| Model – 2 Tier | CCS09SB13-2FB | CCS12SB13-2FB | CCS15SB13-2FB | CCS18SB13-2FB | CCS24SB13-2FB |
|---|---|---|---|---|---|
| Model – 3 Tier | CCS09SB13-3FB | CCS12SB13-3FB | CCS15SB13-3FB | CCS18SB13-3FB | CCS24SB13-3FB |
| Temperature°C (celsius) | +1 to +6 | +1 to +6 | +1 to +6 | +1 to +6 | +1 to +6 |
| External Dimension (mm) | 900 x 700 x 1350 | 1200 x 700 x 1350 | 1500 x 700 x 1350 | 1800 x 700 x 1350 | 2400 x 700 x 1350 |
| Internal Dimension (mm) | 780 x 580 x 700 | 1080 x 580 x 700 | 1380 x 580 x 700 | 1680 x 580 x 700 | 2280 x 580 x 700 |
| Voltage/ Frequency (V/Hz) | 230V / 1 / 50Hz | 230V / 1 / 50Hz | 230V / 1 / 50Hz | 230V / 1 / 50Hz | 230V /1 / 50Hz |
| 220V / 1 / 60Hz | 220V / 1 / 60Hz | 220V / 1 / 60Hz | 220V / 1 / 60Hz | 220v / 1 / 60Hz | |
| Cooling Capacity | 646 | 792 | 1002 | 1346 | 1628 |
| Wattage (W) | 760 – 840 | 950 -1050 | 1045-1155 | 1330 – 1470 | 1615 – 1785 |
| Ampere (A) | 4.75 – 5.25 | 5.7- 6.3 | 5.7 – 6.3 | 7.6 – 8.4 | 9.0 – 10.0 |
| Refrigerant | R134a | R134a | R134a | R134a | R134a |
| Defrost System | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation | Forced Air Circulation |
| Weight (kg) – 2 Tier | 144 | 190 | 236 | 282 | 328 |
| – 3 Tier | 161 | 202 | 242 | 289 | 334 |
| Unit For 20ft Container | 14 | 11 | 10 | 7 | 4 |
| Unit For 40ft Container | 30 | 24 | 22 | 16 | 8 |

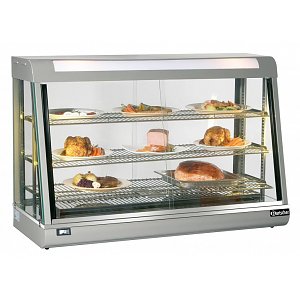

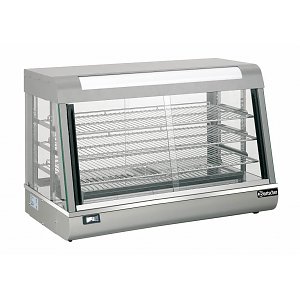

Display Unit
- Suitable for cake and confectionery. An ideal showcase, which creates impulse sales.
- Display compartment is constructed with double layer hardened glass.
- 4 sides clear glasses with front curved glass and internal lighting for excellent display.
- Oversized coil and low velocity fan system maintain high humidity and low temperature and product freshness.
Description
Reviews (0)
Related products
Display Cabinet
- Suitable for cake and confectionery. An ideal showcase, which creates impulse sales.
- Display compartment is constructed with double layer hardened glass.
- 4 sides clear glasses with front curved glass and internal lighting for excellent display.
- Oversized coil and low velocity fan system maintain high humidity and low temperature and product freshness.
- Environmental friendly refrigerant (CFC and HCFC Free) R134a
Display Counter Straight glass refrigerated or Ambient
- Suitable for cake and confectionery. An ideal showcase, which creates impulse sales.
- Display compartment is constructed with double layer hardened glass.
- 4 sides clear glasses with front rectangular glass and internal lighting for excellent display.
- Oversized coil and low velocity fan system maintain high humidity and low temperature and product freshness.
- Environmental friendly refrigerant (CFC and HCFC Free) R134a
Salamander Gas / Electric
- Stainless steel construction.
- Large capacity griller and warmer.
- Top element with thermostat controls to adjust the intensity of heat
- Removable oil drips pan for easy cleaning.
- Pilot light to indicate element is on.
- Ideal for heating, baking and gratinating, cooking pizza, sandwiches, cake and etc.
- Equipped with a chromed plated heavy duty rack, with 3 shelf position.
- Rack equipped with positive safety stop for pull out position.
Undercounter Freezer/ Refrigerator
- High-density Cyclo-isopentane Polyurethane insulated body saves energy.
- Insulated partition between left freezer and right chiller compartment ensures temperature integrity of each product zone.
- Refrigeration system protected from corrosion by urethane-treated evaporator coil.
- Effective counter – balanced weight system self-closing door provides smooth, even, positive closure.
